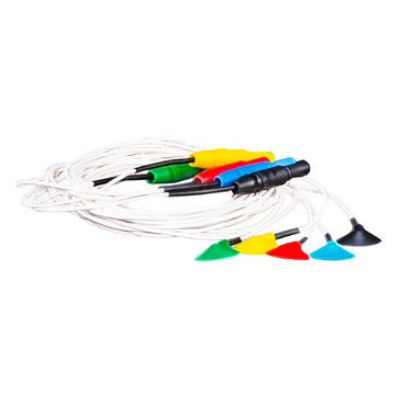

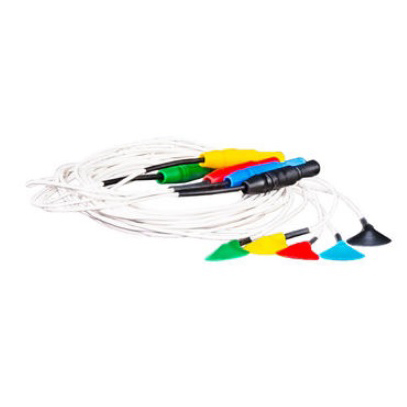

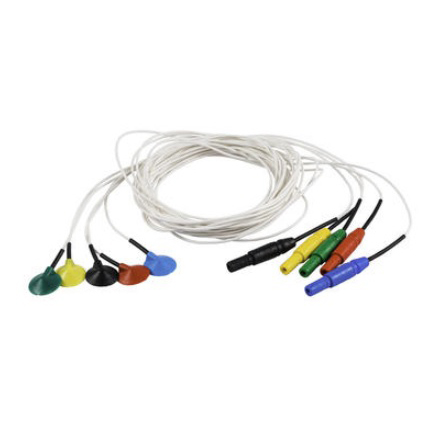

Sintered Electrode

Features:
  • Set of 5 electrodes for 1 and 2-channel EEG measurements (e.g. 2 x plus-/2 x minus-/1 x ground electrode)
  • Sintered silver/silver chloride electrodes for stable and low noise measurements of biopotentials
  • Suitable for measurement of EEG signals in the classic frequency range 1-40Hz
  • Especially suitable for measurement of slow EEG signals in the “infra-low” frequency range <0,1Hz
  • Reduced susceptability to movement artifacts
  • Good reversible properties
  • Electrode caps in different colours for easy identification
  • Electrode caps in plastic for simple attachement to the skin and easier cleaning
  • Electrode cable with 4mm/1.2mm-connector for direct connection to one of the five electrode sockets in the EEG NeuroAmp® II or EEG NeuroAmp® II.5s
Technical details:
  • Set of 5 sintered silver/silver chloride electrodes
  • Electrodes in individual colours: 1 x black, green, blue, yellow, red
  • Electrode cable with connector (4mm/1.2mm) for connection to EEG NeuroAmp® II or EEG NeuroAmp® II.5s
Included in delivery:
  • Electrode set (5pcs.)
  • Care instructions
