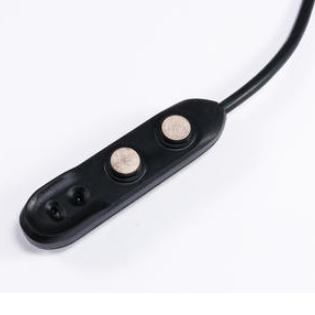

Combi Sensor Biofeedback Device

  • Measurement device for highly accurate recording of physiological stress parameters: skin conductance, temperature and heart rate

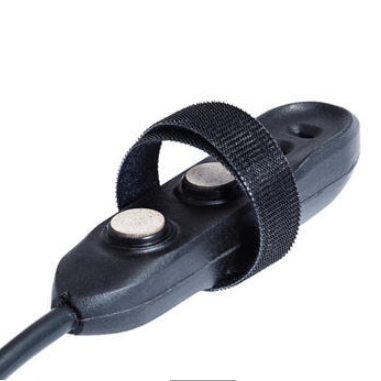

  • Functional housing, three integrated sensors and strap for attachment to the finger
  • Sensor measurement directly from the skin surface (finger)
  • Very easy handling
  • Integrated sensor-amplifier and signal processing electronics

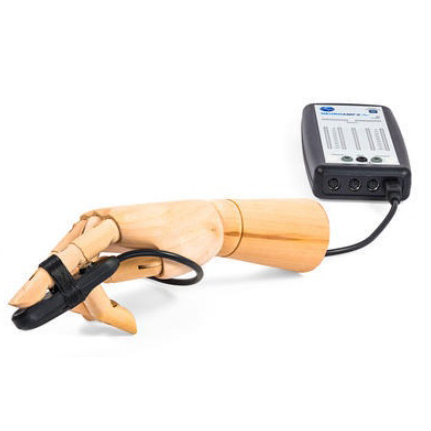

  • Integrated cable for direct connection to EEG NeuroAmp® II or EEG NeuroAmp® II.5s
  • Graphic display of measured values and calculation of the patients’ stressfactor through the neurofeedback-software Cygnet©
  • Approved as a medical device
Technical specifications:
  • Functional housing, integrated sensors and direct connection  to EEG NeuroAmp® II and EEG NeuroAmp® II.5s
  • Three integrated sensors for skin conductance (1), temperature (1) and heart-rate (2)
  • Skin conductance (measuring range): 0.2-100µMho
  • Temperature (measuring range): 20-40°C, response time: 60s
  • Heart-rate frequency: optic measurement with 940nm and 660nm at the fingertip, sampling rate: 62 measurements/s
  • Power supply via EEG NeuroAmp® device
Included in delivery:
  • Combi Sensor Biofeedback device
  • Band for fastening the sensor to the finger
  • Kinesiolgie tape (black, 1,2cm x 5m)
  • Instruction manual
  • Padded carrying case for Combi Sensor device with labeling
