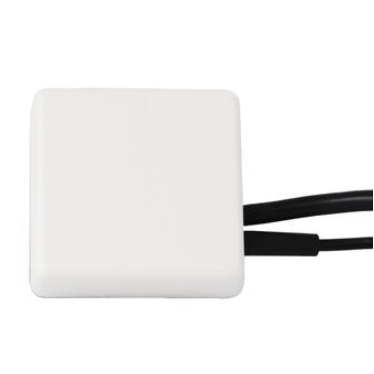

Synchronisation device for accurate recording of stimulus presentation and patient reactions*

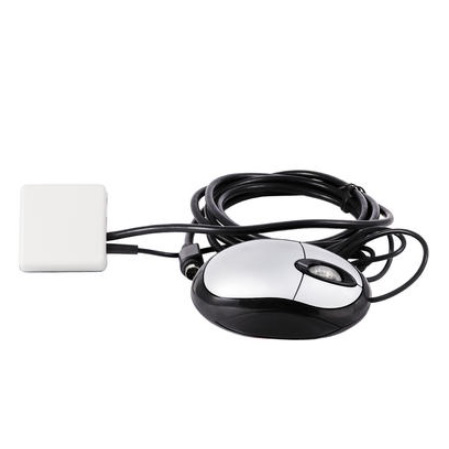

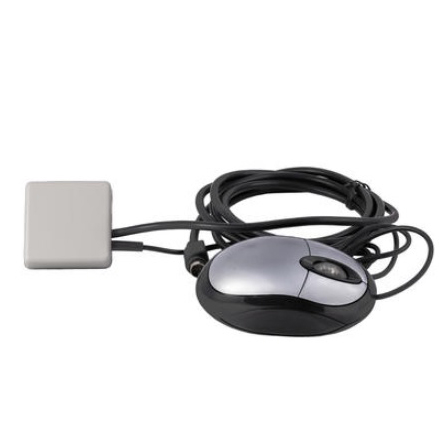

Device includes cable connected device similar to a computer mouse with two high-precision buttons for the patients’ reactions.
Stereo-Audio-Input (3,5mm) for PC-audio signal
Stereo-Audio-Output (3,5mm) connector for headphones/speakers
Cable and DIN-socket to connect to EEG NeuroAmp® II.5s*
Blue transparent case to isolate from galvanic voltage.
Approved as a medical device
* The device can only be used in connection with EEG NeuroAmp® II.5s. To fulfil its function, the device must also be adjusted in a correct placement on the computer monitor where the visual ERP-stimuli are presented.
1-channel video sensor with dynamic range >70dB and reaction time <1ms
1-channel audio sensor with frequency range 100-2000Hz and reaction time <1ms
2-channel input device (“computer mouse”) with two high-precision buttons, connected via cable
Device cover for isolation of galvanic voltage
Two Audio-I/O-sockets for 3,5 mm stereo jack.
Power supply through EEG NeuroAmp® II.5s.
Included in delivery:
QEEG ERP device with cable connected input device and connecting cable for EEG NeuroAmp® II.5s
Stereo-audio-cable with two 3,5 mm stereo jack, 5 m
ERP standard tasks
Task Generation Software
